MCCB - MOULDED CASE CIRCUIT BREAKER

Name: MCCB - MOULDED CASE CIRCUIT BREAKER
Brand: SHREE JOTIRLING ELECTRICAL
Price: 18117.0 INR
Availability: InStock

Price 18117.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MCCB - MOULDED CASE CIRCUIT BREAKER Specification

Phase
Three Phase

Rated Short Circuit Making Current
40 kA @ 220/240V AC 36 kA @ 380/415V AC 30 kA @ 440V AC Ampere (A)

Product Type
Moulded Case

Poles Number
3

Rated Current
400 A at 40 C Ampere (amp)

Rated Frequency
50/60 Hertz (HZ)

Warranty
18 Months

Weight
4.7 Kilograms (kg)

Usage & Applications
Industrial Panels Commercial Buildings MCC Panels Distribution Boards Feeder & Main Incomer Protection

MCCB - MOULDED CASE CIRCUIT BREAKER Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva (JNPT), Mumbai

Payment Terms
Cash in Advance (CID), Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Month

Delivery Time
10 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Unit Packaging (1 Piece): Type: PCE (Piece) Box Size: 29 16 15 cm Weight: 4.931 kg Schneider Original Packing Thermocol / Cushion Protection Bulk Packaging (Optional): Pack of 3 Box Size: 60 40 30 cm Pack of 12 Box Size: 120 80 45 cm

Main Export Market(s)
Asia, Eastern Europe, Africa, Western Europe, Middle East

Main Domestic Market
All India

Certifications
IEC 60947-2 Certified EN 60947-2 Certified GOST Certified

About MCCB - MOULDED CASE CIRCUIT BREAKER

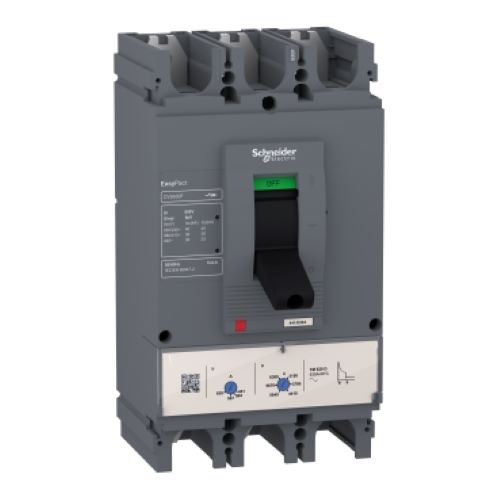

EasyPact CVS400F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 400A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS400F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Advanced Circuit Protection for demanding environments

This MCCB ensures superior short-circuit and overload protection, making it ideal for high-demand industrial and commercial applications. With its high breaking capacity and three-phase compatibility, it guards electrical systems from faults, minimizing downtime and equipment damage.

Wide Application Versatility

Designed for integration in various settings such as industrial panels, MCC panels, distribution boards, and large-scale commercial infrastructures, this breaker adapts to diverse operational requirements and installation environments, ensuring flexible deployment across your electrical network.

FAQs of MCCB - MOULDED CASE CIRCUIT BREAKER:

Q: How does the rated short-circuit making current affect the performance of the MCCB?

A: The rated short-circuit making current (up to 40 kA at 220/240V AC) determines the MCCBs ability to safely handle and interrupt high fault currents during electrical faults, effectively protecting downstream equipment and maintaining system reliability.

Q: What applications are best suited for this MCCBs use?

A: This MCCB is ideal for industrial panels, commercial buildings, MCC panels, feeder and main incomer protection, and distribution boards, particularly in environments requiring robust three-phase protection.

Q: When should the MCCB be replaced or serviced?

A: Regular maintenance checks are recommended, but the MCCB should be replaced immediately if it fails to trip during fault conditions, shows signs of mechanical damage, or after interruption of a significant short-circuit event.

Q: Where is this MCCB typically installed within electrical systems?

A: It is commonly installed within industrial control panels, distribution boards, main incomer sections, and MCC (Motor Control Center) panels to provide centralized and reliable circuit protection.

Q: What is the installation process for this MCCB in three-phase systems?

A: Installation involves integrating the MCCB with three-phase busbars or wiring, ensuring proper torque on terminals, verifying alignment, and testing for continuity and protection settings according to manufacturer guidelines and safety standards.

Q: How does using this MCCB benefit commercial and industrial facilities?

A: Using this MCCB enhances facility safety by minimizing risks of electrical fires or equipment damage due to overloads or short-circuits, increases system reliability, and supports compliance with safety standards in demanding environments.

Q: What warranty coverage is provided with the MCCB?

A: The MCCB comes with an 18-month warranty from the date of purchase, offering peace of mind and protection against manufacturing defects for extended operational assurance.
