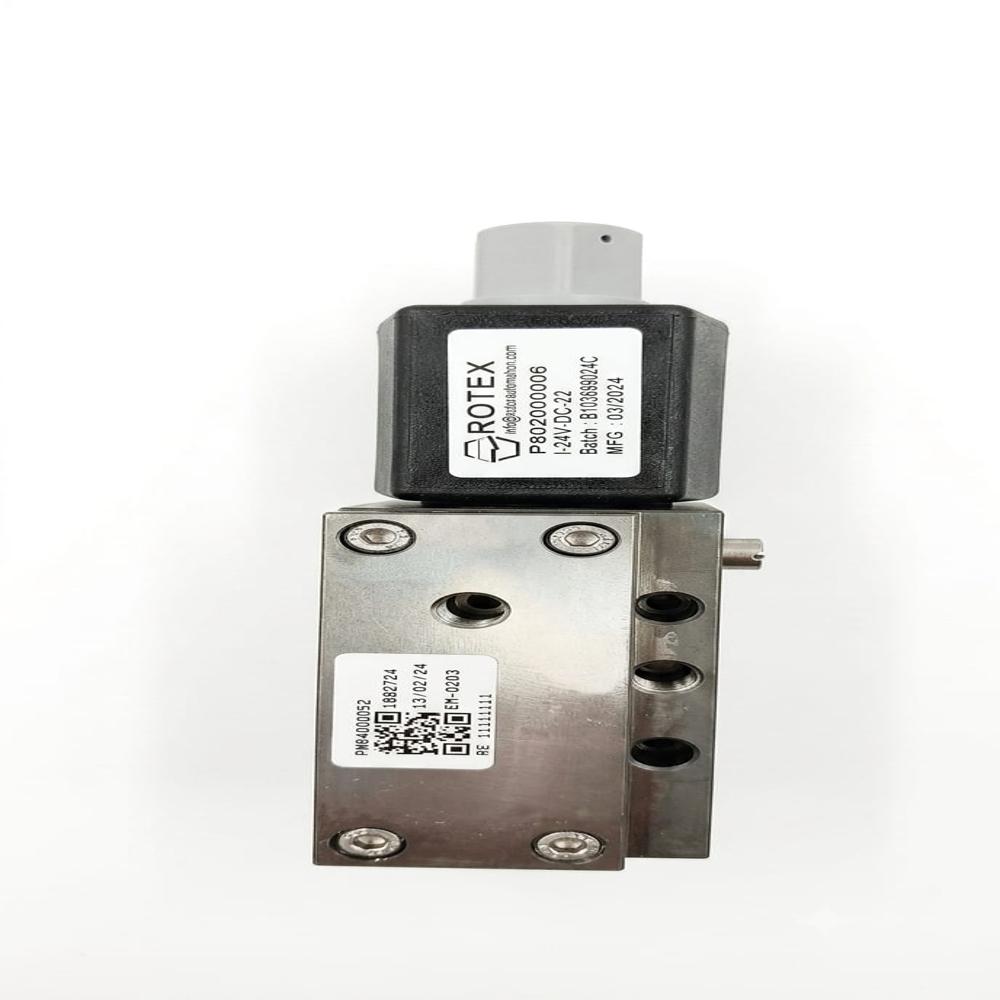

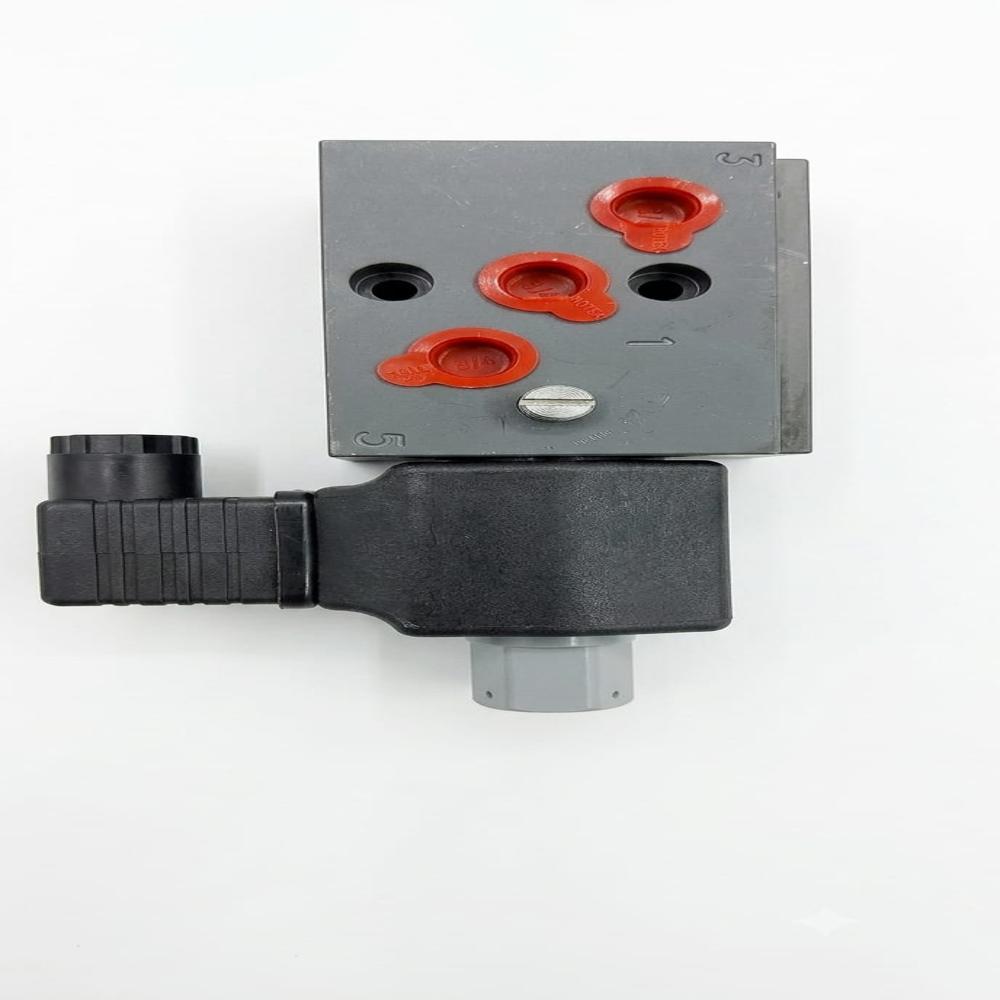

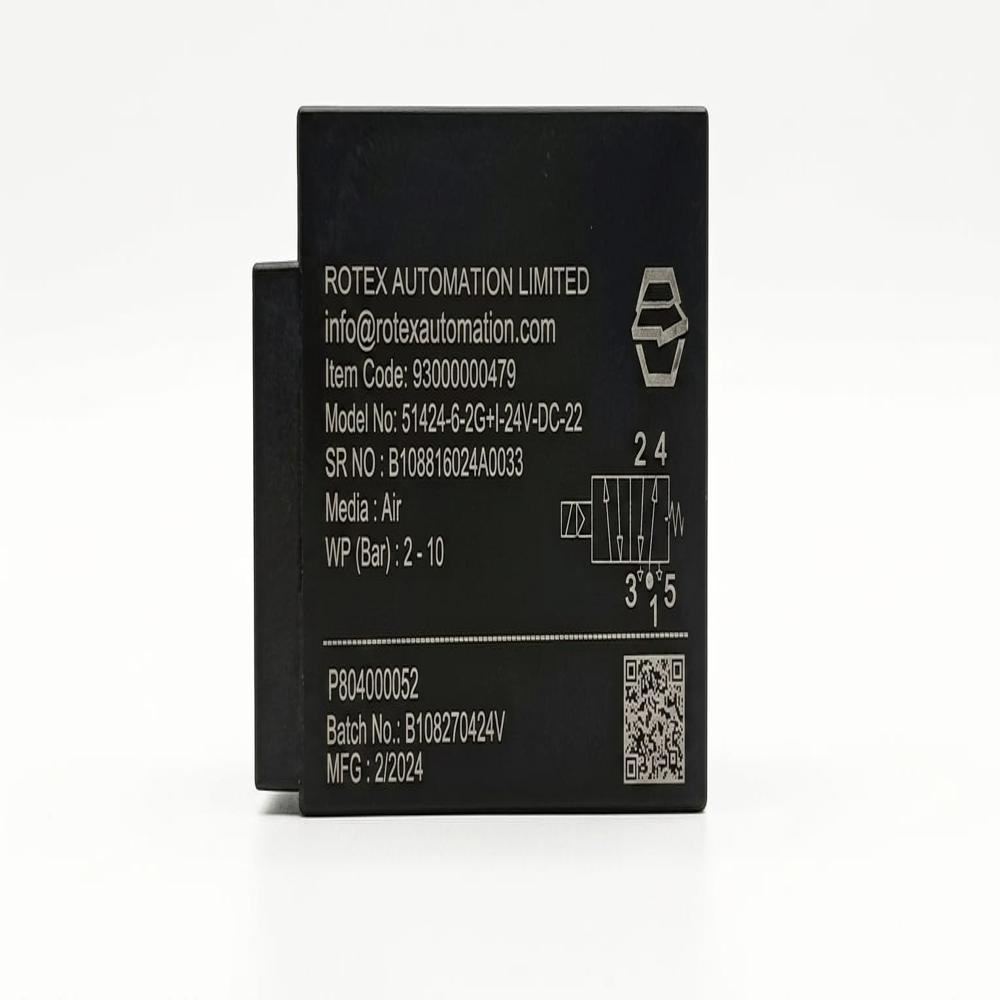

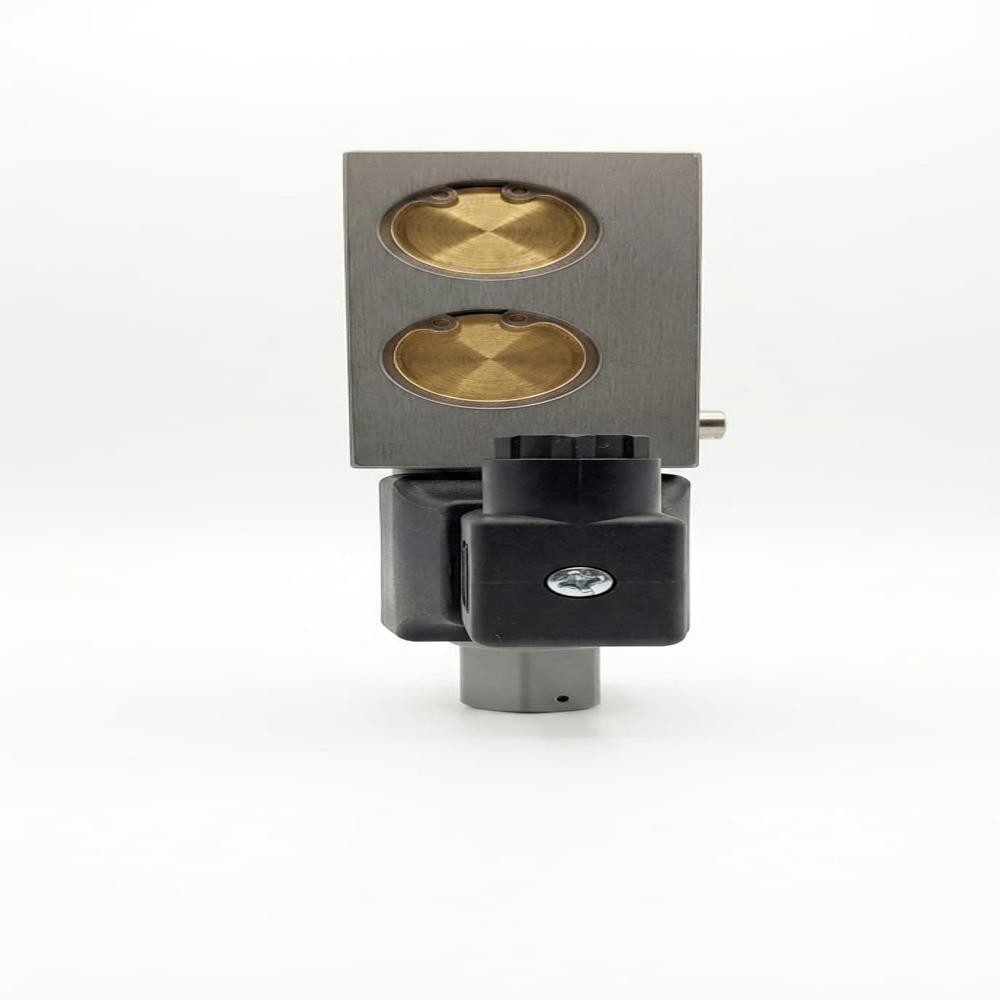

Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22

Name: Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22
Brand: SHREE JOTIRLING ELECTRICAL
Price: 4150.0 INR
Availability: InStock

Price 4150.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22 Specification

Operating Voltage
24V DC

End Connection
NAMUR Mount

Working Presssure
2 to 8 Bar

Power Consumption
2.5W (at 24V DC)

Material
Aluminum Body with Engineering Plastic Components

Valve Structure
Spool

Way Type
5/2 Way

Processing Type
Precision Machined

Pressure
2 to 8 Bar

Dimension (L*W*H)
Approx. 80 x 50 x 30 mm

Port Size
NAMUR Standard

Connection Type
NAMUR Mounting Interface

Application
Actuator Control, Pneumatic Automation

Media
Filtered Compressed Air

Temperature of Media
-10C to +70C

Working Temperature
-10C to +70C

Weight
Approx. 450 grams

Color
Black/Grey with Red Plugs

Seal Material
NBR (Nitrile Rubber)

Response Time
<30 ms

Manual Override
Yes (Non-locking Type)

Coil Connection
DIN Connector

Mounting Position
Any

Duty Cycle
Continuous

Coil Insulation Class
Class F

Model Number
51424-6-2G+I-24V-DC-22

Enclosure Protection
IP65 with DIN Connector

Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
5 Days

About Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22

The Rotex 5/2 NAMUR Single Solenoid Valve is designed for reliable pneumatic actuator control in industrial automation applications. It features a 24V DC coil, NAMUR mounting, robust aluminium body construction, and is suitable for air service. This valve offers fast switching, long service life, and dependable performance in process industries. It is widely used in control panels, pneumatic systems, valve actuators, and automation equipment.

Versatile and Compact Performance

Designed for pneumatic actuator automation, this 5/2 way solenoid valve delivers quick and reliable switching via precision machining, ensuring long-term stability. Compact dimensions and a weight of approximately 450 grams allow for easy integration in space-constrained applications without sacrificing functionality.

Rugged Design for Harsh Environments

With its aluminum and engineering plastic construction and IP65 enclosure protection, the valve is highly resistant to dust and water. The NBR seals cater to a wide temperature range (-10C to +70C), making it suitable for various industrial conditions and guaranteeing consistent performance.

Easy Installation and Maintenance

Equipped with a NAMUR standard mounting interface and DIN connector, the valve streamlines setup and maintenance. The non-locking manual override adds convenience for manual operations and troubleshooting, ensuring minimal downtime and operational continuity.

FAQ's of Rotex 5/2 NAMUR Single Solenoid Valve 24V DC Model 51424-6-2G+I-24V-DC-22:

Q: How is the Rotex 5/2 NAMUR Single Solenoid Valve installed in a pneumatic system?

A: This valve features a NAMUR standard mounting interface, allowing direct installation onto compatible actuators. Simply align the mounting holes and secure the valve with the appropriate fasteners for a reliable connection.

Q: What is the main benefit of using this solenoid valve in actuator control applications?

A: The main advantage lies in its fast response time (less than 30 ms) and continuous duty cycle, providing quick and reliable switching for precise actuator movement and improved automation efficiency.

Q: When should I consider using the manual override function on this valve?

A: Use the manual override (non-locking type) during commissioning, routine maintenance, or when troubleshooting actuator movement without electrical power. This enables manual operation for safety and convenience.

Q: Where can this solenoid valve be used considering its protection rating and material?

A: With an IP65 protection level and durable aluminum/plastic build, the valve is suitable for dusty or mildly wet industrial environments, such as manufacturing plants, processing units, and automation setups.

Q: What type of maintenance does the valve require for optimal performance?

A: Periodic inspections to ensure clean filtered compressed air, checking for seal wear (NBR seals), and confirming that the enclosure and DIN connector remain intact will help maintain performance and prevent failures.
