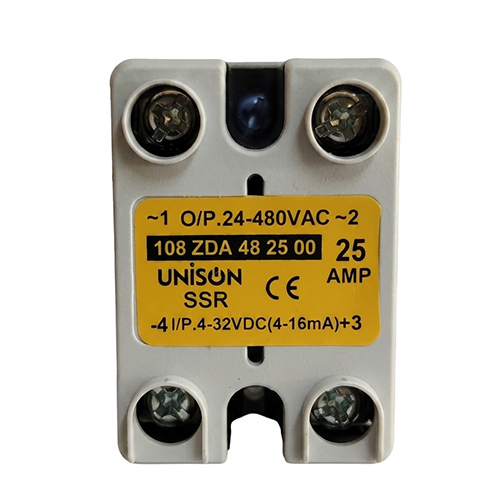

Solid State Relay (SSR)

Name: Solid State Relay (SSR)
Brand: SHREE JOTIRLING ELECTRICAL
Price: 250 INR
Availability: InStock

Price 250 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Solid State Relay (SSR) Specification

Power Consumption
Low: Typically <1W

Contact Resistance
Typ. <50 m

Coil Power
<0.75W

Coil Voltage
4-32VDC (Input Voltage)

Mechanical Life
Solid State: No mechanical contacts for wear

Ambient Temperature
-30C to +80C

Dielectiric Strength
2500VAC for 1 minute

Working Temperature
-20C to +70C

Contact Material
Semiconductor

Contact Form
SPST-NO (Single Pole Single Throw - Normally Open)

Protect Feature
Encapsulated, Overload Protection

Product Type
Solid State Relay (SSR)

Insulation Resistance
>1000 M at 500VDC

Theory
Solid State Electronics

Usage
Switching AC Loads without Mechanical Contacts

Contact Load
25A at 24-480VAC

Operate Time
Fast switching, typically <10ms

Terminal Type
Screw Terminal

Rated Voltage
24-480VAC

Supply Terminal
Screw Mount

Size
Standard compact size (approx. 58 mm x 45 mm)

Color
White with Yellow Label

Dimension (L*W*H)
Approx. 58 x 45 x 22 mm

Weight
Approx. 70g

Model
108 ZDA 48 25 00

Ingress Protection
IP 40

Output Type
AC Switching

CE Certification
Yes

Mounting Type
Panel Mount

Input Current
4-16mA

Solid State Relay (SSR) Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

About Solid State Relay (SSR)

Discover top-tier performance with the 108 ZDA 48 25 00 Solid State Relay (SSR), now offered at the lowest price for an unbeatable bargain. Designed for superior switching of AC loads without mechanical contacts, this panel mount SSR is CE certified and provides fast, reliable operation (<10ms). Its resplendent white design with a yellow label stands out in any setup, while high insulation resistance and encapsulated overload protection ensure remarkable durability. Add to Cart today and enjoy robust output (25A, 24-480VAC), low power consumption, and lasting mechanical life.

Outstanding Features & Versatile Applications

This SSR is distinguished by its exceptional overload protection, fast operate time, and high dielectric strength, making it suitable for a resplendent range of industrial sites, automation systems, and control panels. Its solid-state electronics ensure noise-free switching, while panel mounting and compact dimensions fit seamlessly in commercial installations. From HVAC control to motor switching, its top-tier design elevates process safety and reliability across diverse sectors.

Secure Packaging & Rapid Delivery

Each unit is securely packed to protect against transit damage, ensuring your SSR arrives in pristine condition. Prompt sample availability supports evaluation for new projects. With our swift logistics network, quick dispatch and delivery-typically within a few business days-are guaranteed. Expect your solid state relay to be delivered reliably and efficiently, wherever your site may be located across India.

FAQ's of Solid State Relay (SSR):

Q: How does the 108 ZDA 48 25 00 SSR operate without mechanical contacts?

A: The SSR utilizes solid-state electronics and semiconductor materials, allowing it to switch AC loads through electronic means rather than through physical, mechanical contacts. This ensures minimal wear and extended mechanical life.

Q: What are the primary benefits of using this SSR in commercial environments?

A: Key benefits include fast switching (<10ms), remarkable overload protection, encapsulated design, and high insulation resistance. These features contribute to safer, more reliable AC load switching with reduced maintenance in commercial and industrial applications.

Q: Where can this SSR be mounted and what type of terminals does it offer?

A: The SSR is designed for panel mounting and features screw terminals for both input and output connections, ensuring secure installation and ease of wiring in control cabinets or commercial panels.

Q: When can I expect delivery and are samples available for testing?

A: Sample units are available upon request. Following order confirmation, expect quick dispatch with delivery typically completed within a few business days via our efficient logistics network.

Q: How does encapsulation and overload protection enhance SSR performance?

A: Encapsulation shields the internal components from dust, moisture, and impacts, while overload protection prevents damage from excessive current, ensuring reliable and long-lasting operation.
